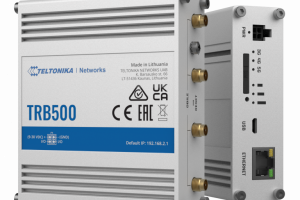

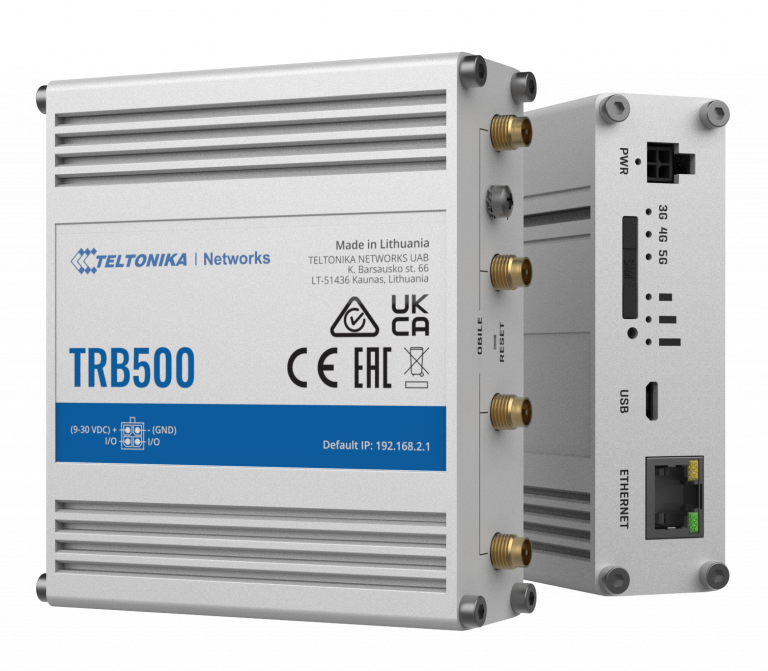

TRB500 – Gateway industrial 5G

O TRB500 é um gateway industrial com tecnologia 5G, de tamanho reduzido e baixo consumo, com uma porta Gigabit Ethernet e duas I/O configuráveis que podem ser aplicadas a uma multitude de cenários de uso.

Este dispositivo permite a conexão a velocidades 5G com muito baixa latência, tornando-o especialmente indicado para aplicações críticas ou de alta demanda de tráfego, graças às suas 4 antenas externas que permitem o uso de configurações 4×4 MIMO.

O TRB500 vem equipado com o RutOS, um sistema operacional próprio da Teltonika que proporciona funcionalidades avançadas em segurança, incorpora protocolos industriais como Modbus, MQTT entre outros, e é compatível com a plataforma Remote Management System (RMS) para acesso remoto e monitorização de grandes volumes de dispositivos.

MOBILE
Mobile module5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4×4 MIMO), 900/600 Mbps UL (2×2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
StatusSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID.
SMS/CallSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities
USSDSupports sending and reading Unstructured Supplementary Service Data messages
Black/White listOperator black/white list
Band managementBand lock, Used band status display
APNAuto APN
BridgeDirect connection (bridge) between mobile ISP and device on LAN
PassthroughGateway assigns its mobile WAN IP address to another device on LAN
ETHERNET
LAN1 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
NETWORK
Network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)
RoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
Connection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
FirewallPort forwards, traffic rules, custom rules
DHCPStatic and dynamic IP allocation
DDNSSupported >25 service providers, others can be configured manually
SSHFSPossibility to mount remote file system via SSH protocol
SECURITY
AuthenticationPre-shared key, digital certificates, X.509 certificates
FirewallPre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
Attack preventionDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLANPort and tag-based VLAN separation
Mobile quota controlSet up custom data limits for SIM card
WEB filterBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access controlFlexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPNMultiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN EncryptionDES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
GREGRE tunnel
IPsecIKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
PPTP, L2TPClient/Server services can run simultaneously, L2TPv3 support
SSTPSSTP client instance support
STUNNELProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPNMethod of building scalable IPsec VPNs
WireGuardWireGuard VPN client and server support
ZeroTierZeroTier VPN
MODBUS
MODBUS TCP SLAVE
ID filteringRespond to one ID in range [1;255] or any
Allow remote accessAllow access through WAN
Custom registersMODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality
MODBUS TCP MASTER
Supported functions01, 02, 03, 04, 05, 06, 15, 16
Supported data formats8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
MQTT GATEWAY
GatewayAllows sending commands and receiving data from MODBUS Master through the MQTT broker
DNP3
Supported modesTCP Master, DNP3 Outstation
DATA TO SERVER
ProtocolHTTP(S), MQTT, Azure MQTT, Kinesis
MONITORING & MANAGEMENT
WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log
FOTAFirmware update from sever, automatic notification
SSHSSH (v1, v2)
SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET
CallReboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTTMQTT Broker, MQTT publisher
SNMPSNMP (v1, v2, v3), SNMP trap
JSON-RPCManagement API over HTTP/HTTPS
MODBUSMODBUS TCP status/control
RMSTeltonika Remote Management System (RMS)
IoT PLATFORMS
Cloud of ThingsAllows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorxAllows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
CumulocityAllows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT HubCan send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
SYSTEM CHARACTERISTICS
CPUSingle core ARM Cortex A7, 1.5 GHz
RAM256 MB (128 MB available for userspace)
FLASH storage512 MB (200 MB available for userspace)
FIRMWARE / CONFIGURATION
WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup
FOTAUpdate FW
RMSUpdate FW/configuration for multiple devices
Keep settingsUpdate FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating systemRutOS (OpenWrt based Linux OS)
Supported languagesBusybox shell, Lua, C, C++
Development toolsSDK package with build environment provided
INPUT/OUTPUT
Configurable I/O2 x Configurable Inputs/Outputs. Digital input 0 – 5 V detected as logic low, 8 – 40 V detected as logic high. Open collector output, max output 30 V, 300 mA
Output controlHTTP POST/GET, Schedule
EventsSMS, EMAIL
I/O jugglerAllows setting certain I/O conditions to initiate event
POWER
Connector4-pin industrial DC power socket
Input voltage range9 – 30 VDC, reverse polarity protection, surge protection >33 VDC 10us max
Power consumptionIdle:
PHYSICAL INTERFACES (PORTS, LEDS, ANNTENAS, BUTTONS, SIM)
Ethernet1 x RJ45 port, 10/100/1000 Mbps
I/Os2 x Configurable I/O pins on 4-pin power connector
USB1 x Virtual network interface via micro USB
Status LEDs3 x connection type status LEDs, 3 x connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
SIM1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power1 x 4-pin DC power connector
Anntena4 x SMA for Mobile
ResetReboot/User default reset/Factory reset button
GroundingGrounding screw terminal
PHYSICAL SPECIFICATIONS
Casing materialAluminum housing
Dimensions (W x H x D)100 x 30 x 93,4 mm
Weight241g
Mounting optionsDIN rail, Flat surface
OPERATING ENVIRONMENT
Operating temperature-40 °C to 75 °C
Operating humidity10 % to 90 % non-condensing
Ingress Protection RatingIP30
